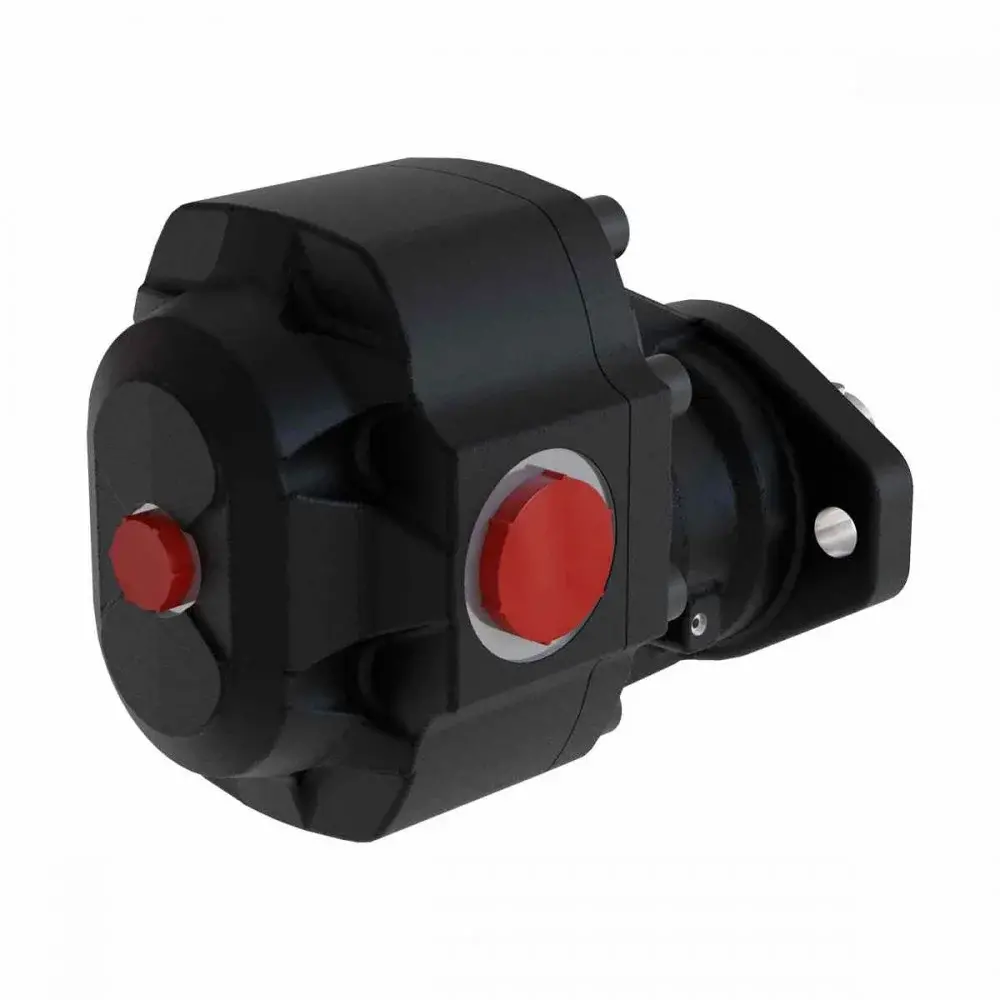

Blue Ascend GPM30 Cast Iron Gear Motor — Group 30
Model series: GPM30
The GPM30 is a mid-range cast iron gear motor engineered for high-cycle, high-pressure hydraulic duties. Built from spheroidal cast iron, it handles pressures up to 300 bar and covers a wide displacement range of 17.2 to 99.7 cc/rev across nine variants. Available in both ISO and UNI configurations, the GPM30 suits a broad range of industrial and mobile equipment applications.
Key Specifications
- Displacement range: 17.2 – 99.7 cc/rev (9 variants)
- Maximum pressure: up to 300 bar
- Maximum speed: up to 3,000 rpm
- Minimum speed: 600 – 650 rpm (model dependent)
- Body: Spheroidal cast iron
- Mounting: ISO and UNI types available
| Motor Type | Displacement (cc/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| GPM30.017 | 17.2 | 300 | 3000 | 650 |
| GPM30.027 | 27.1 | 290 | 3000 | 650 |
| GPM30.034 | 34.4 | 280 | 2750 | 650 |
| GPM30.043 | 42.9 | 270 | 2500 | 600 |
| GPM30.051 | 51.2 | 240 | 2500 | 600 |
| GPM30.061 | 60.7 | 220 | 2000 | 600 |
| GPM30.073 | 73.0 | 200 | 1750 | 600 |
| GPM30.082 | 81.4 | 190 | 1750 | 600 |
| GPM30.100 | 99.7 | 180 | 1750 | 600 |
