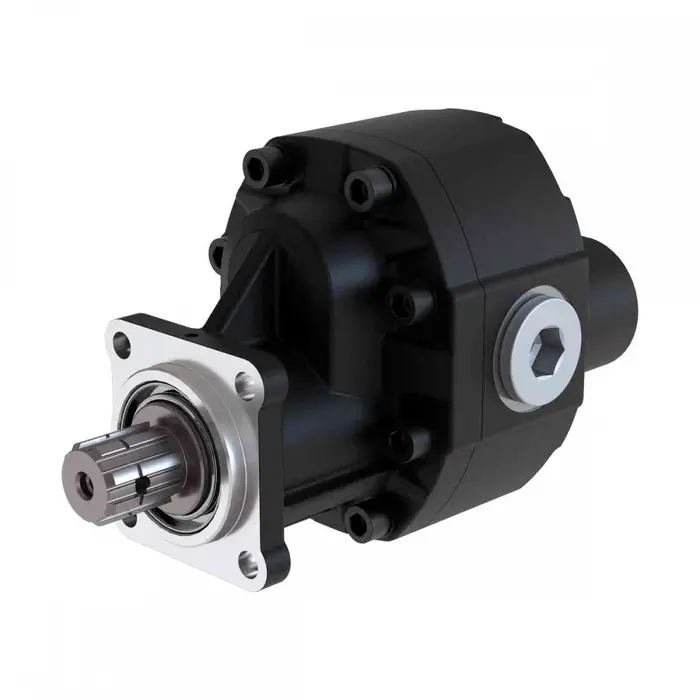

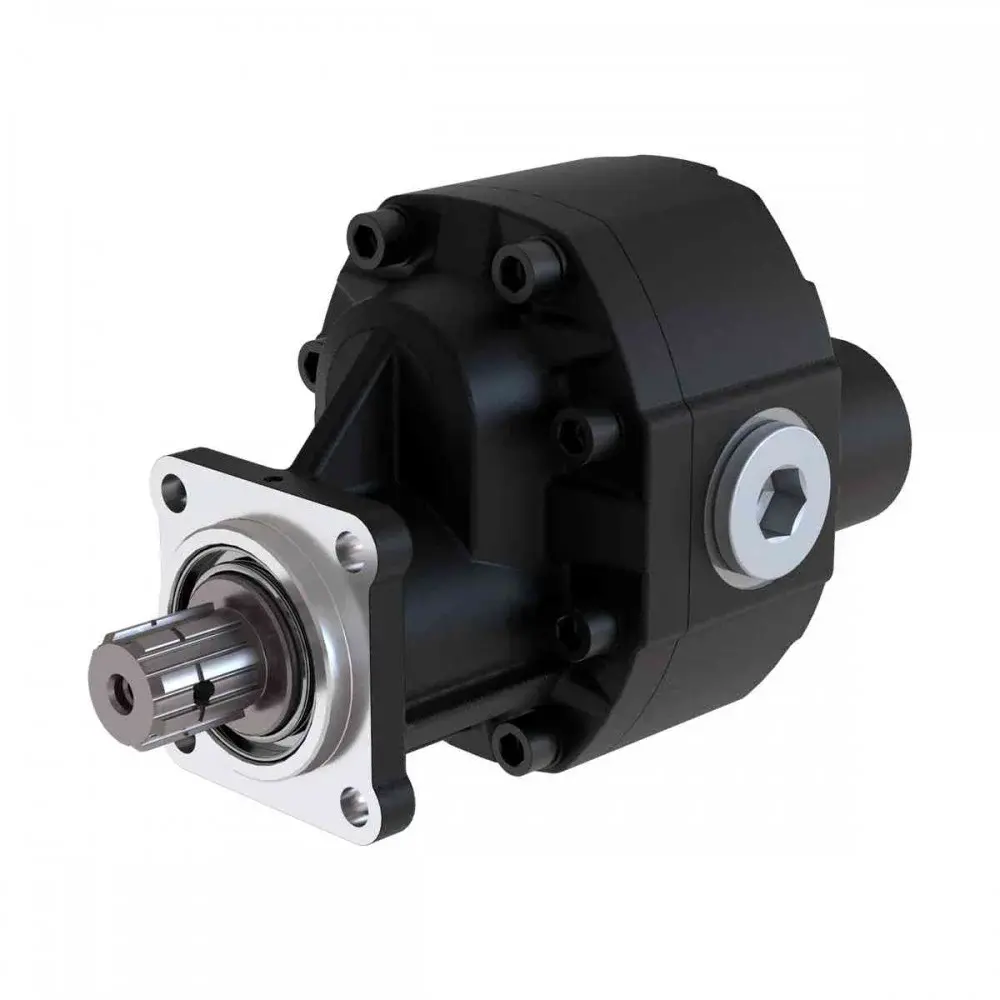

Blue Ascend GPM40 Cast Iron Gear Motor (Group 40)
Model series: GPM40
The GPM40 is Blue Ascend's largest cast iron gear motor, purpose-built for high-torque, high-displacement hydraulic drives. With displacements from 63.8 to 148.3 cc/rev and a spheroidal cast iron body rated to 280 bar, it's designed for the kind of sustained, demanding work found in forestry, construction, and heavy industrial equipment. Six variants cover a wide torque range without compromising on durability.
Key Specifications
- Displacement range: 63.8 – 148.3 cc/rev (6 variants)
- Maximum pressure: up to 280 bar
- Maximum speed: up to 2,750 rpm
- Minimum speed: 300 rpm
- Body: Spheroidal cast iron
Why FPD?
FPD supplies Blue Ascend hydraulic gear motors to trade customers across New Zealand. For high-torque drive applications in forestry, construction, or heavy industry, our team can identify the right GPM40 variant for your needs. Call us on (07) 849 5771 or email [email protected].
| Motor Type | Displacement (cc/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| GPM40.063 | 63.8 | 280 | 2750 | 300 |
| GPM40.073 | 72.2 | 280 | 2750 | 300 |
| GPM40.087 | 86.1 | 260 | 2750 | 300 |
| GPM40.109 | 107.3 | 240 | 2750 | 300 |
| GPM40.133 | 131.6 | 220 | 2500 | 300 |
| GPM40.151 | 148.3 | 180 | 2500 | 300 |
