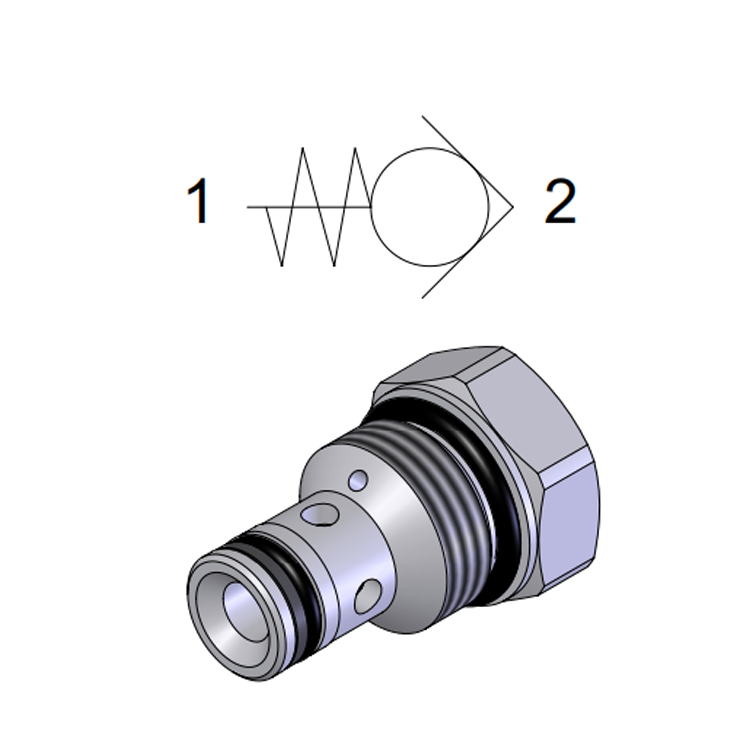

Cartridge Check Valve 3/4-16 UNF-2A
Compact cartridge check valve for smaller-bore manifold circuits and pilot-line applications. Free-flow passes from port 1 to port 2; reverse flow is blocked. Three cracking pressure options allow it to be tuned to the specific circuit requirements.
Its small body and standard UNF cartridge thread make it a practical choice where space is limited and a reliable, low-leakage check is needed.
Key Specifications
- Type: Cartridge check valve
- Thread: 3/4-16 UNF-2A | Tightening torque: 30–35 Nm (HEX 22)
- Max. pressure: 350 bar
- Max. flow: 20 l/min
- Cracking pressure options: 0.5 bar, 1 bar (standard), 3 bar
- Cavity code: DO-590.001.51
- Seal options: NBR 70 Shore A (standard) | Viton (on request)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread | Max. Pressure (bar) | Max. Flow (l/min) |
| 3/4-16 UNF-2A | 350 | 20 |
