Dual Cross-Over Direct Acting Relief Valve (90° Ports)

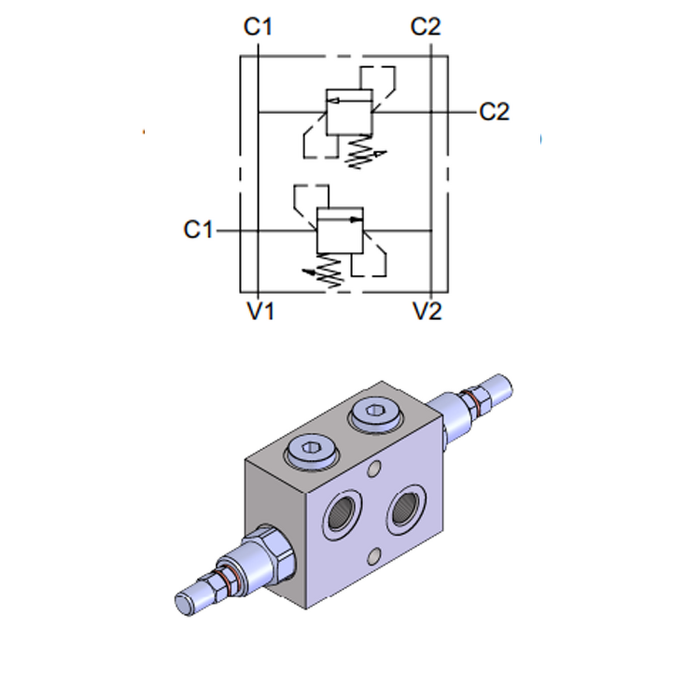

A dual cross-over relief valve — it contains two opposing relief valves in a single manifold body, protecting both A and B lines simultaneously. The 90° port layout allows the motor or cylinder ports (C1/C2) to connect at right angles to the work ports (V1/V2), which suits many motor and rotary actuator mounting configurations.
This type of valve is commonly used for hydraulic motor overload and shock protection — in drives where sudden load reversals or deceleration spikes need to be safely limited.
Key Specifications
- Type: Dual cross-over direct acting relief valve, 90° port orientation
- Port sizes (C1-V1 / C2-V2): 3/8" or 1/2" BSPP
- Max. pressure: 350 bar
- Max. flow: 45 l/min (3/8") | 75 l/min (1/2")

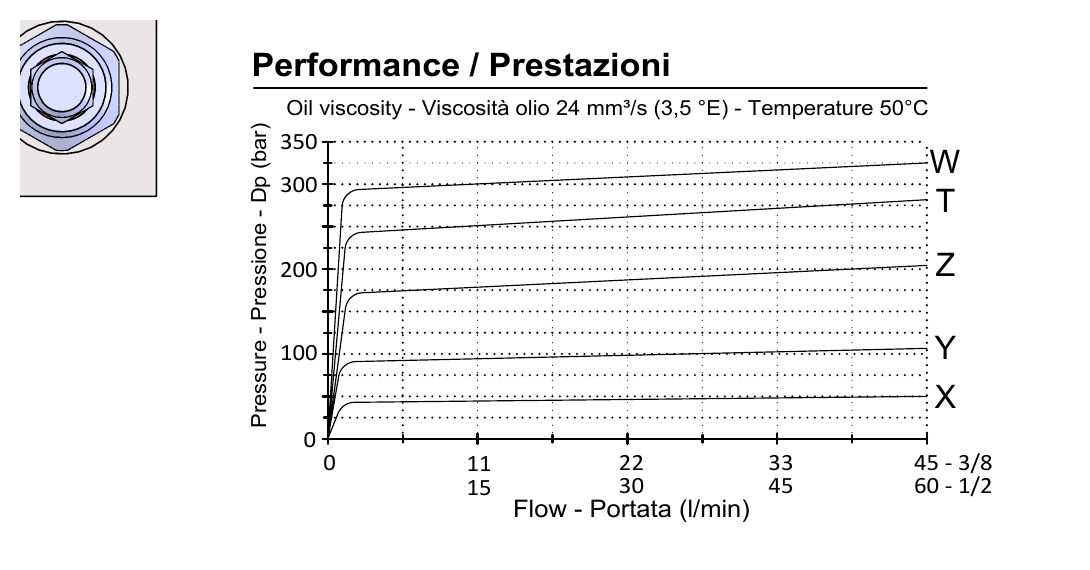

- Setting ranges: X: 10–50 bar | Y: 20–100 bar | Z: 10–180 bar (std, 90 bar) | T: 50–250 bar | W: 80–300 bar
- Manifold material: Zinc plated steel
- Adjustment: Screw with steel cap (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread C1-V1 | Thread C2-V2 | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | X: 10-50 bar | 30 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | Y: 20-100 bar | 70 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | Z: 10-180 bar (Std) | 90 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | T: 50-250 bar | 130 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | W: 80-300 bar | 150 |
| 1/2 BSPP | 1/2 BSPP | 350 | 75 | X: 10-50 bar | 30 |
| 1/2 BSPP | 1/2 BSPP | 350 | 75 | Z: 10-180 bar (Std) | 90 |
| 1/2 BSPP | 1/2 BSPP | 350 | 75 | W: 80-300 bar | 150 |
