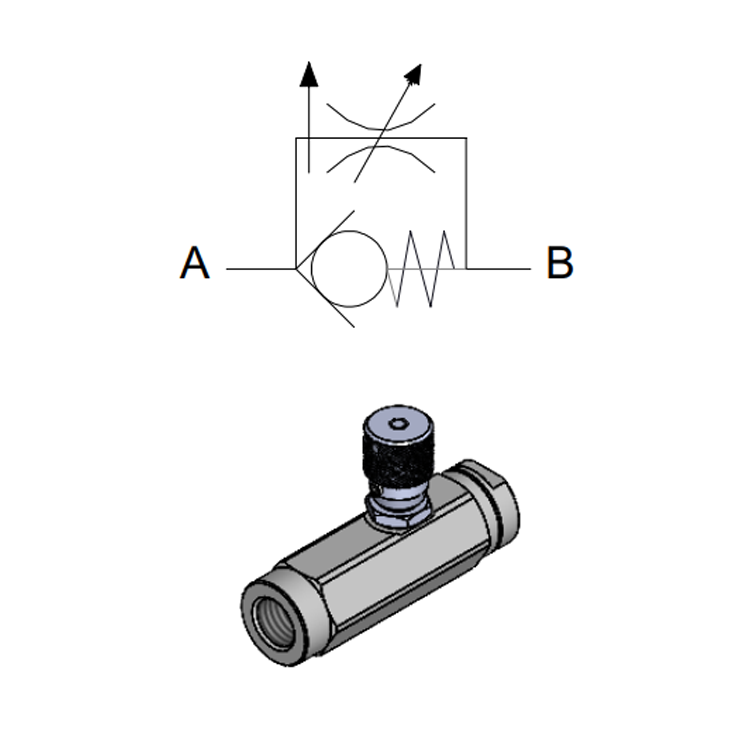

Inline Unidirectional pressure compensated flow regulator
Maintain consistent flow regardless of pressure fluctuations. A compact, inline flow regulator that delivers stable, pressure-compensated flow in one direction — ideal for hydraulic circuits where speed control and repeatability matter.
Available in 1/4", 3/8", and 1/2" BSPP port sizes to suit a range of system requirements.
Key Specifications
- Max pressure: 250 bar
- Max flow (1/4" BSPP): 10 l/min
- Max flow (3/8" BSPP): 20 l/min
- Max flow (1/2" BSPP): 40 l/min
- Port thread: BSPP (1/4", 3/8", 1/2")
- Fluid temperature range: –20°C to +90°C
- Ambient temperature range: –20°C to +50°C
- Fluid viscosity standard: ISO 3448
- Filtration standard: ISO 4406
- External finish: Zinc plated

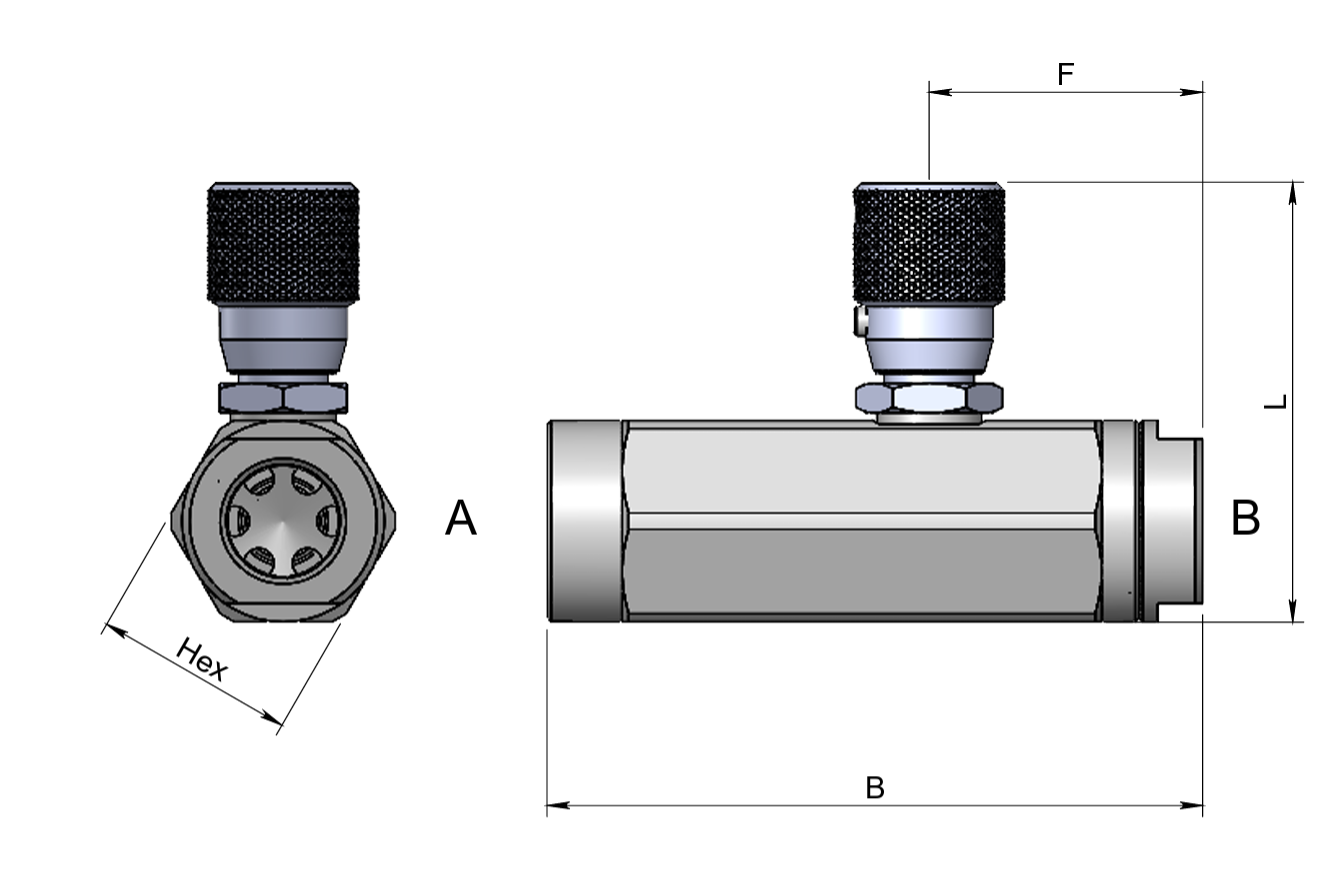

| Thread A-B | B (mm) | F (mm) | L (mm) | Hex (mm) | Weight (kg) | Max Pressure (bar) | Max Flow (l/min) |
| 1/4 BSPP | 87.5 | 36.5 | 60 | 27 | 0.4 | 250 | 10 |
| 3/8 BSPP | 87.5 | 36.5 | 60 | 27 | 0.4 | 250 | 20 |
| 1/2 BSPP | 107 | 46 | 71 | 36 | 0.7 | 250 | 40 |
