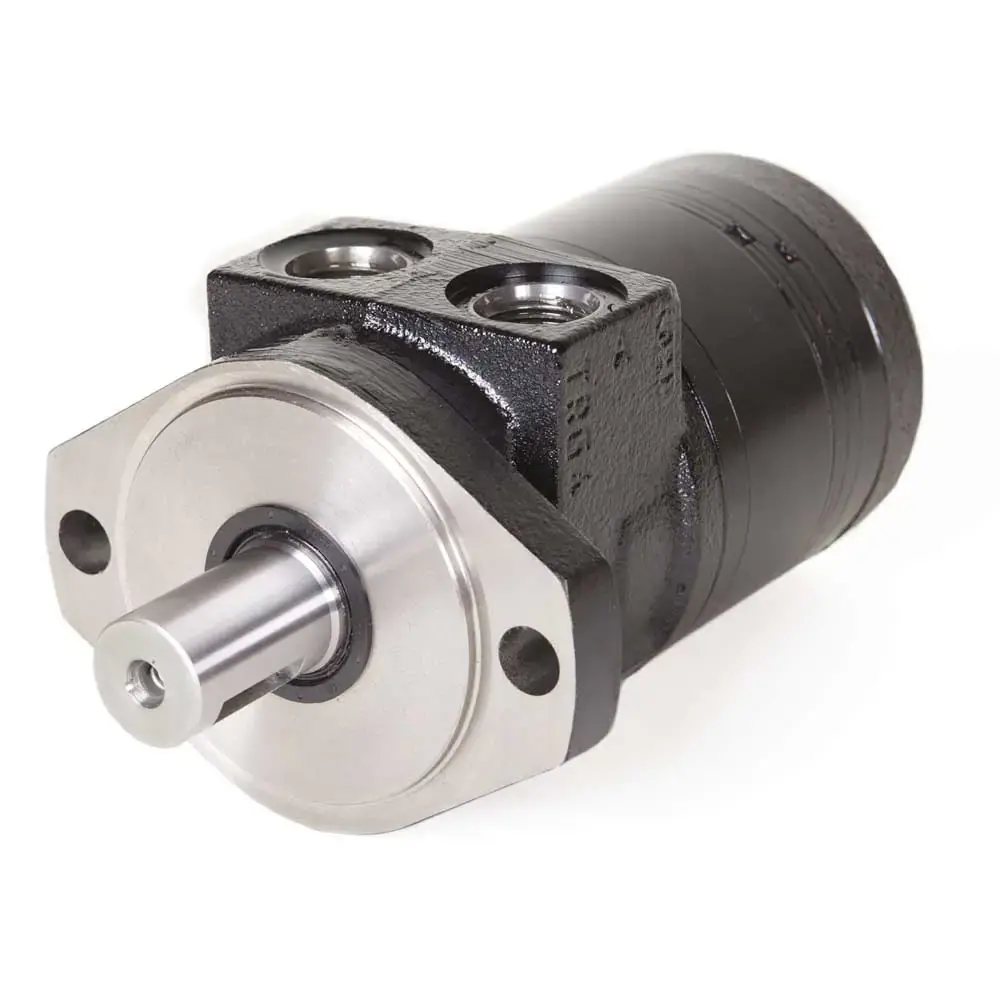

Parker TE Orbital Motor

Parker TE Orbital Motor

Reliable Low-Speed, High-Torque Power for Demanding Applications

When your machinery needs steady torque at low speed — wheel drives, conveyors, augers, winches, and chain-and-sprocket setups — the Parker TE Series orbital motor is built to handle the load. As a medium-duty LSHT (low-speed, high-torque) motor, the TE Series delivers higher pressure ratings than lighter-duty alternatives, making it well suited to applications where reliability under sustained load matters.

FPD supplies the full Parker TE range across New Zealand, backed by the technical know-how to help you specify the right motor for your application.

Built for the Tough Jobs

The TE Series uses robust roller bearings that withstand high side loads, making it a sound choice for chain and sprocket shaft connections. High-pressure shaft seals and high-flow shaft seal cooling help the motor stand up to continuous, demanding duty cycles.

• Key performance specifications:
• Displacement range: 15 options from 36 to 392 cm³/rev (2.2 to 24.0 in³/rev)
• Maximum pressure: up to 140 bar continuous, 190 bar intermittent
• Maximum torque: up to 467 Nm continuous, 648 Nm intermittent
• Maximum oil flow: up to 75 L/min
• Maximum speed: up to 1000 rpm
• Maximum side load at key: up to 6650 N

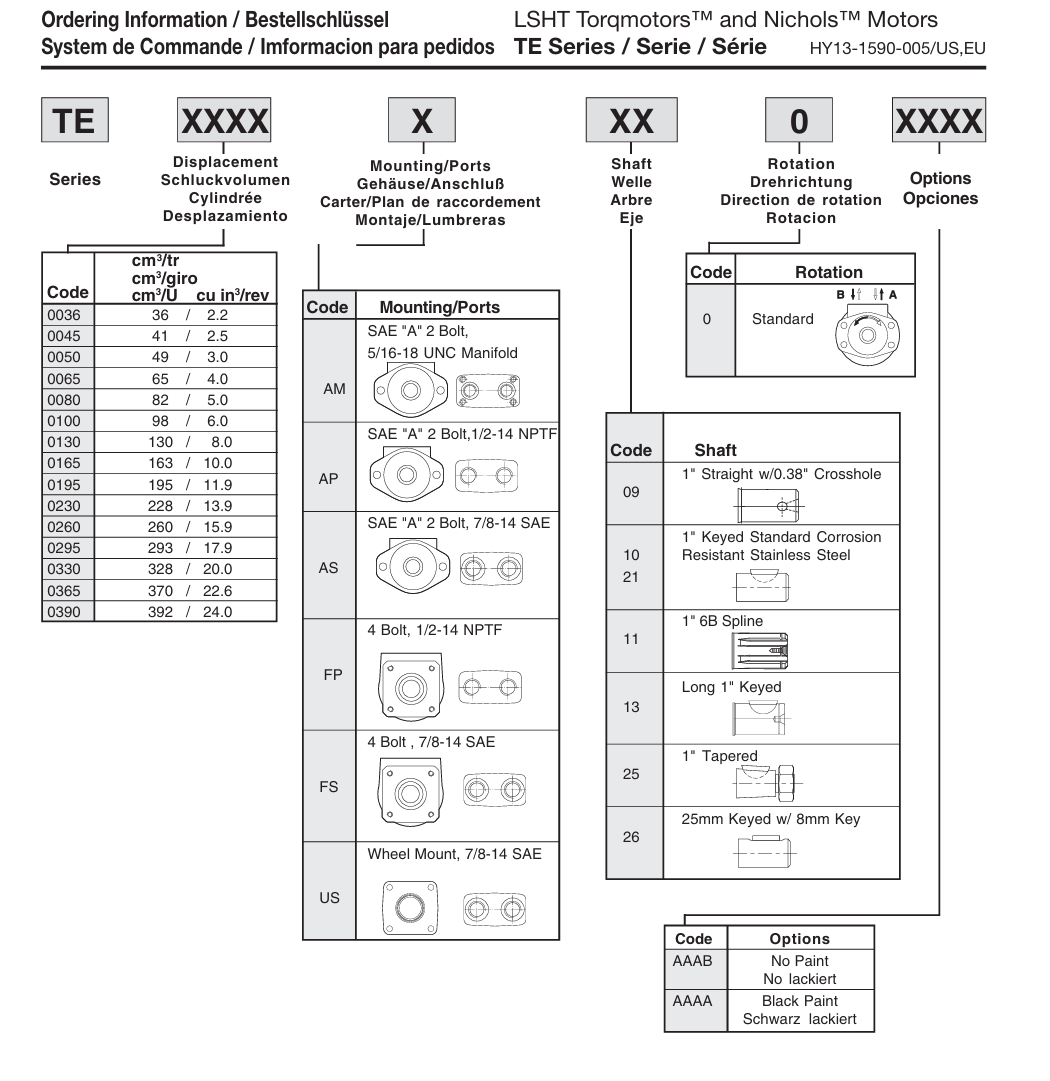

Configure to Suit Your Application

The TE Series is highly configurable, so you can match the motor to your mounting, porting, and drive requirements. Options include:

• Mounting and ports: SAE "A" 2-bolt and 4-bolt configurations, plus wheel-mount options, with NPTF or SAE O-ring port styles
• Shaft choices: 1" straight, 1" keyed, 1" 6B spline, long keyed, tapered, 25mm keyed, and corrosion-resistant stainless steel
• Finish: painted or unpainted

If you're unsure which configuration suits your machine, our team can help you work it out.

Applications

The TE Series is a versatile workhorse across the sectors we serve — agriculture, construction, civil engineering, forestry, and transport. Common uses include wheel and track drives, augers and feed systems, conveyors, winches, and other low-speed, high-torque drive functions.

Why Source Your Parker TE Motors from FPD?

As New Zealand hydraulic specialists with deep technical knowledge, we do more than supply parts — we help you get the specification right the first time. We hold stock locally to keep your lead times short and your machinery running, and we can advise on compatibility, installation, and the wider hydraulic circuit your motor sits within.

Need a Parker TE Series motor? Contact our team for pricing, availability, and specification advice — call (07) 849 5771 or request a quote online.
