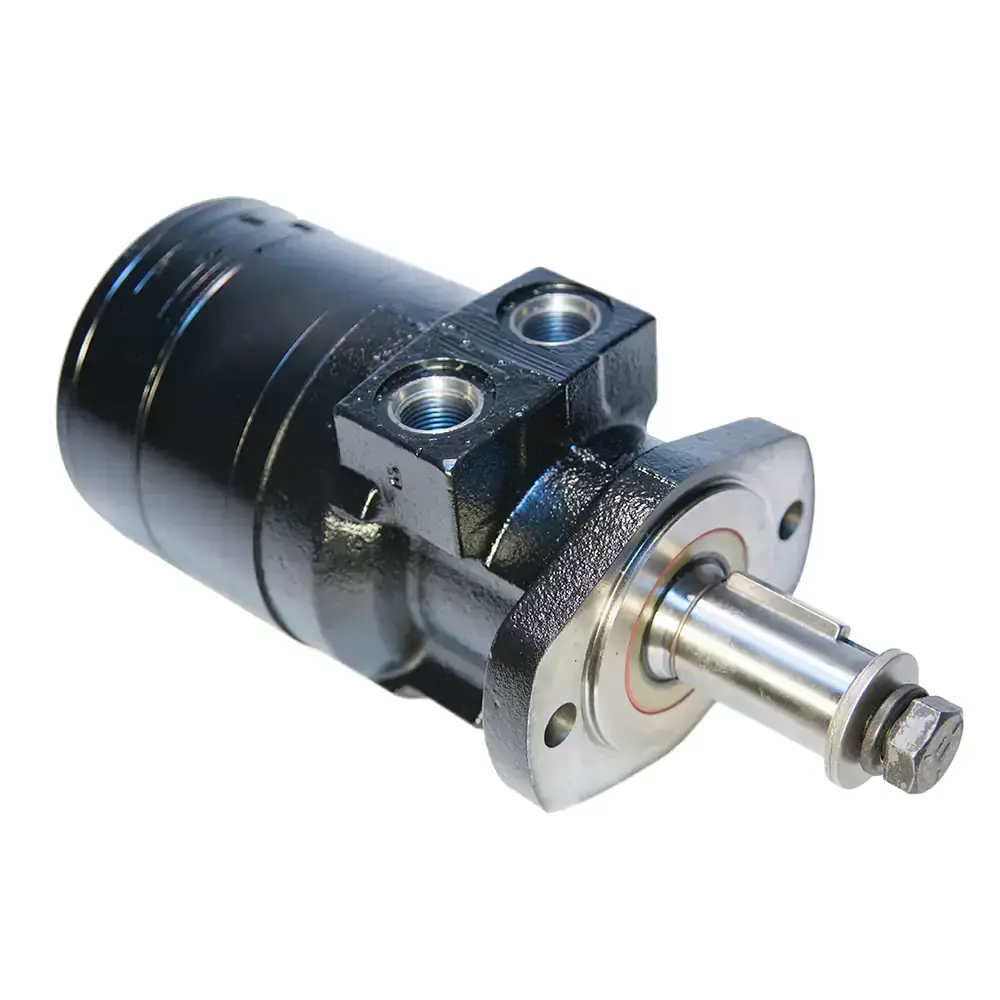

Parker TG Orbital Motor

Parker TG Orbital Motor

Exceptional Torque for High-Performance Drive Applications

When you need serious torque from a compact orbital motor, the Parker TG Series delivers. This high-performance LSHT (low-speed, high-torque) motor is built for exceptional strength and durability, transmitting well over 13,000 lb-in of torque — making it the heavyweight of the Torqmotor range for the most demanding drive functions across construction, forestry, agriculture, and heavy industry.

FPD supplies the full Parker TG range across New Zealand, backed by the technical expertise to help you match the right motor to the load.

Built to Take Punishment and Keep Running

At the heart of the TG Series powertrain is the torque link — an extra heavy-duty part built around patented 60:40 spline geometry. Rugged construction throughout is what allows the motor to handle such high torque, while the entire powertrain is continually washed in cool, high-flow fluid to assure long service life. Roller vanes and a sealed commutator maintain high efficiency and deliver smooth low-speed performance, even under heavy load.

Key performance specifications:

• Displacement range: 13 options from 141 to 959 cm³/rev (8.6 to 58.5 in³/rev)
• Maximum pressure: up to 207 bar continuous, 276 bar intermittent
• Maximum torque: up to 1044 Nm continuous, 1428 Nm intermittent
• Maximum oil flow: up to 114 L/min
• Maximum speed: up to 660 rpm
• Maximum side load at key: up to 16,000 N

The combination of high torque output and a strong 16,000 N side-load rating makes the TG well suited to wheel-drive and other heavily shaft-loaded applications.

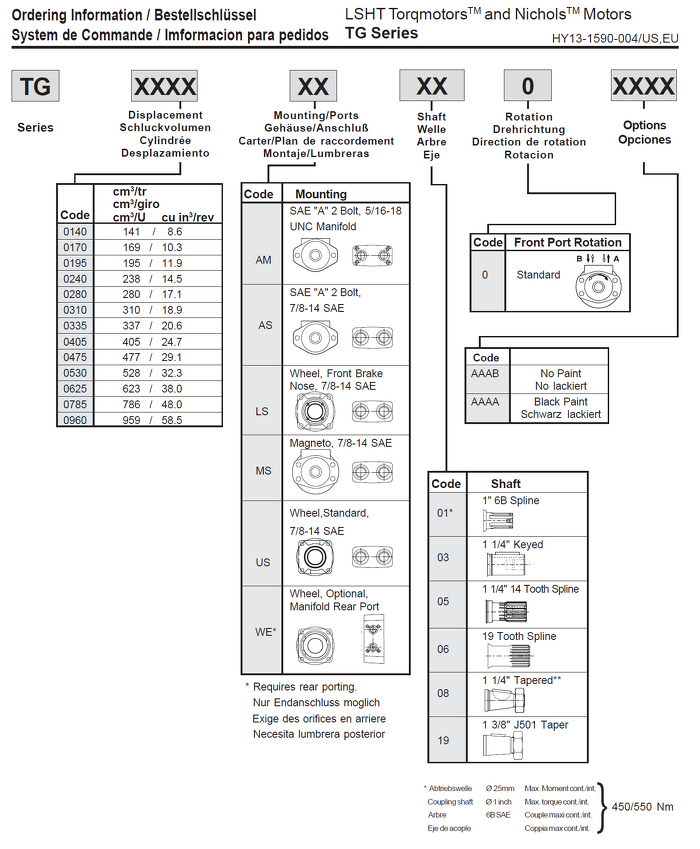

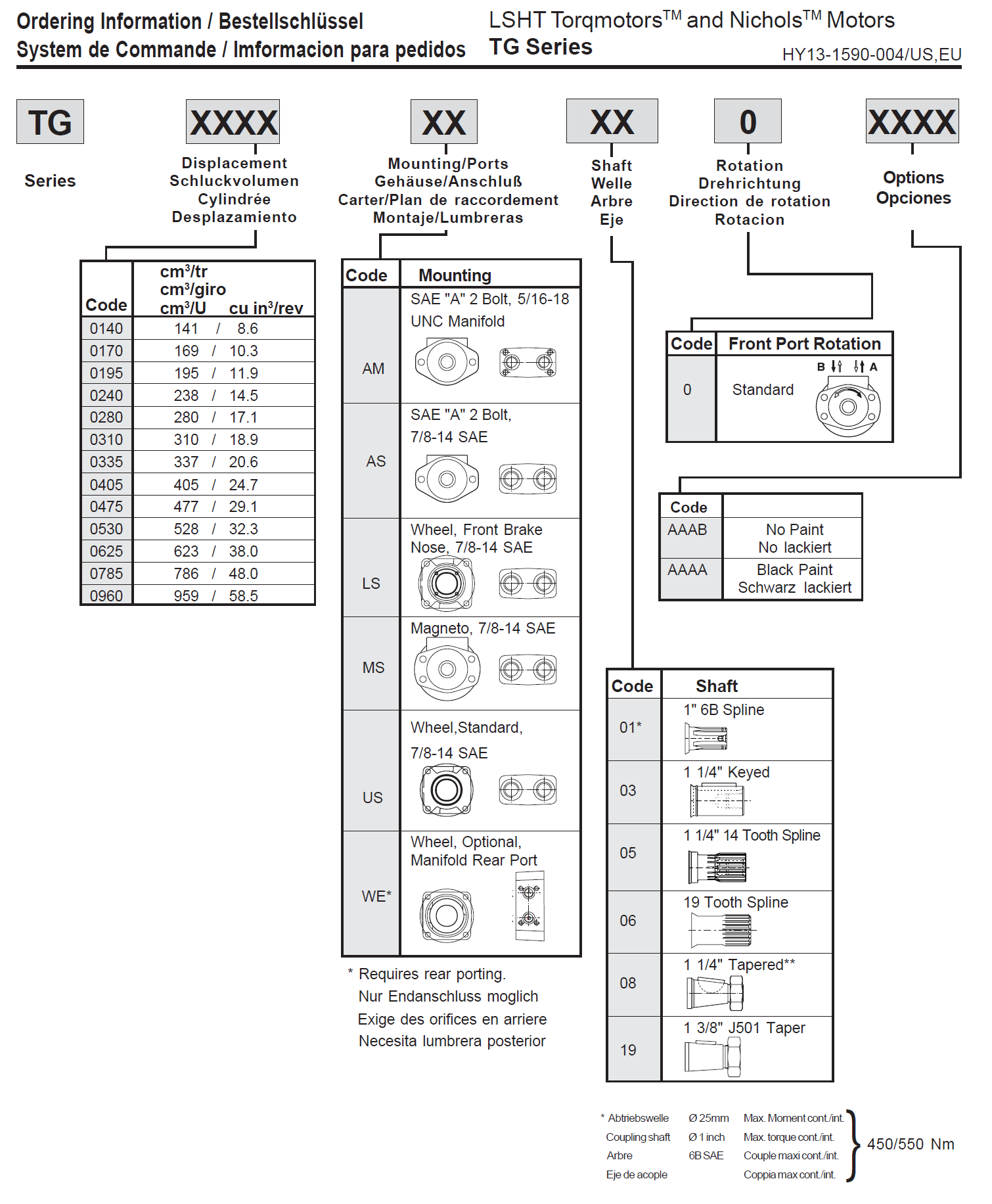

Configure to Suit Your Application

The TG Series offers a range of mounting, porting, and shaft options so you can match the motor precisely to your machine:

• Mounting and ports: SAE "A" 2-bolt (manifold and 7/8-14 SAE), wheel mounts (standard, front-brake-nose, and optional rear-port manifold), and magneto mounts
• Shaft choices: 1" 6B spline, 1¼" keyed, 1¼" 14-tooth spline, 19-tooth spline, 1¼" tapered, and 1⅜" J501 taper
• Finish: painted or unpainted

If you're not sure which configuration suits your setup, our team can help you work it out.

Applications

The TG Series is built for high-torque, low-speed drive functions across the sectors we serve — construction, civil engineering, forestry, agriculture, mining, and transport. Typical uses include wheel and track drives, augers and feed systems, large conveyors, winches, and other high-load drive applications where peak torque and durability are critical.

Why Source Your Parker TG Motors from FPD?

As New Zealand hydraulic specialists with deep technical knowledge, we do more than supply parts — we help you get the specification right the first time. We hold stock locally to keep your lead times short and your machinery running, and we can advise on compatibility, installation, and how the motor fits within your wider hydraulic circuit.

Need a Parker TG Series motor? Contact our team for pricing, availability, and specification advice — call (07) 849 5771 or request a quote online.
