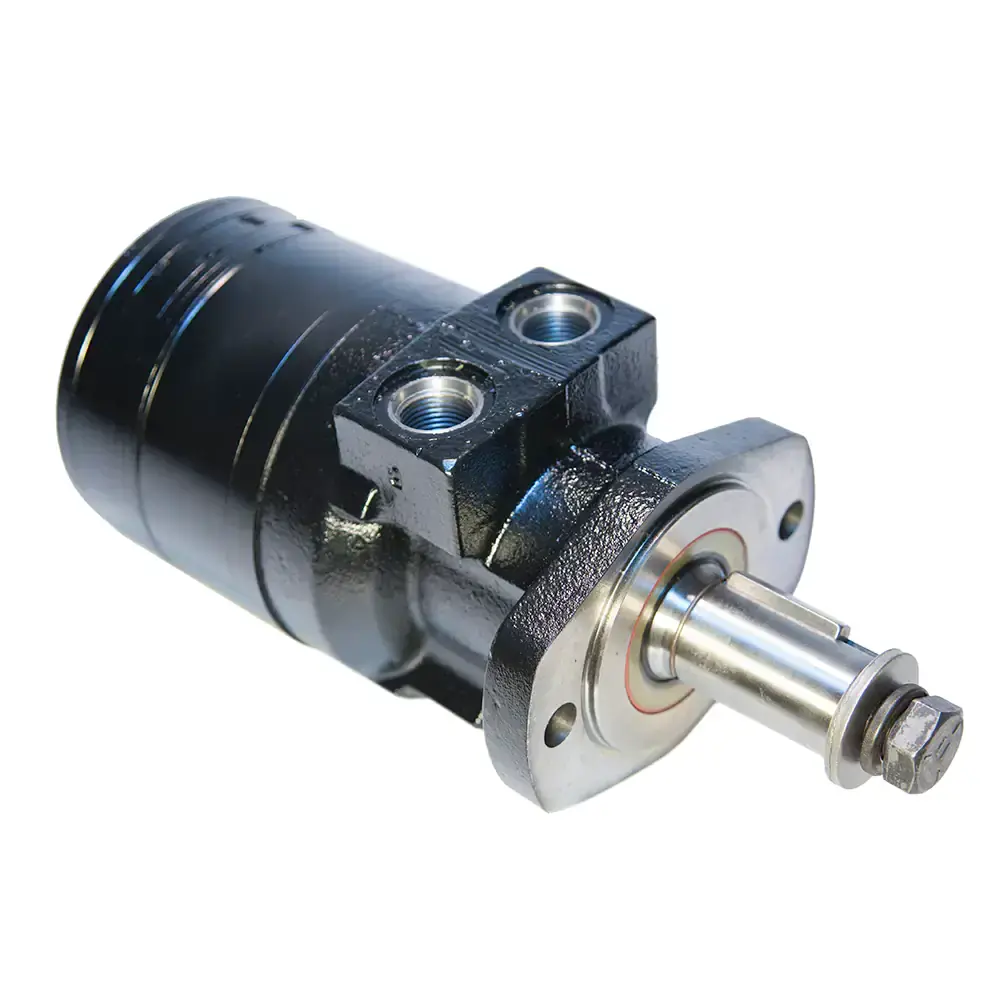

Parker TF Orbital Motor

Parker TF Orbital Motor

Heavy-Duty Torque for the Most Severe Applications

When the job pushes a motor to its limits, the Parker TF Series is built to keep going. This heavy-duty LSHT (low-speed, high-torque) orbital motor is engineered with sturdy construction throughout, making it suitable for the toughest, most demanding applications you'll encounter across construction, forestry, agriculture, and heavy industry.

FPD supplies the full Parker TF range across New Zealand, backed by the technical expertise to help you specify the right motor for the load.

Engineered to Last Under Load

The TF Series is built around a powertrain that uses patented 60:40 spline geometry for added strength. All splines are constantly flushed with cool fluid for durability, while roller vanes and sealed commutation deliver high volumetric efficiency, smooth low-speed operation, and extended service life. The shaft seals withstand full system pressure and are washed in cool fluid, so the motor holds up in continuous, hard-working duty cycles.

Key performance specifications:

• Displacement range: 11 options from 81 to 477 cm³/rev (4.9 to 29.1 in³/rev)
• Maximum pressure: up to 207 bar continuous, 276 bar intermittent
• Maximum torque: up to 681 Nm continuous, 916 Nm intermittent
• Maximum oil flow: up to 95 L/min
• Maximum speed: up to 749 rpm
• Maximum side load at key: up to 16,000 N

That side-load capability is a standout — the TF Series handles high radial loads, which makes it a strong choice for wheel-drive and other shaft-loaded applications.

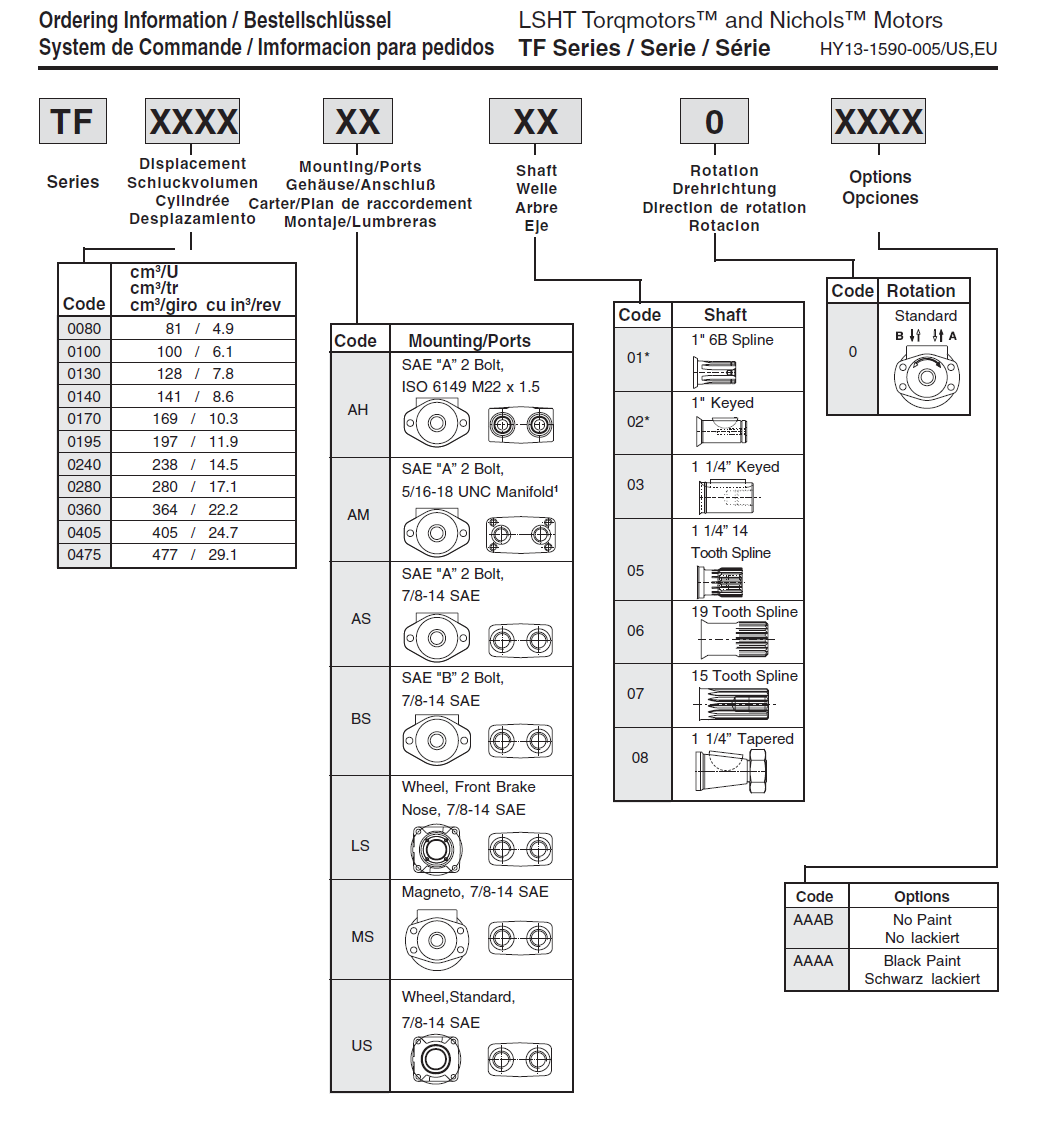

Configure to Suit Your Application

The TF Series offers extensive mounting, porting, and shaft options so you can match the motor precisely to your machine:

• Mounting and ports: SAE "A" and SAE "B" 2-bolt configurations, wheel mounts (standard and front-brake-nose), and magneto mounts, with SAE O-ring or ISO 6149 metric port styles
• Shaft choices: 1" 6B spline, 1" keyed, 1¼" keyed, 1¼" 14-tooth spline, 15-tooth spline, 19-tooth spline, and 1¼" tapered
• Finish: painted or unpainted
• Clutch motor option available on selected displacements

If you're not sure which configuration suits your setup, our team can help you work it out.

Applications

The TF Series is built for heavy-duty, low-speed, high-torque drive functions across the sectors we serve — construction, civil engineering, forestry, agriculture, mining, and transport. Typical uses include wheel and track drives, augers and feed systems, conveyors, winches, and other high-load drive applications where a lighter-duty motor wouldn't last.

Why Source Your Parker TF Motors from FPD?

As New Zealand hydraulic specialists with deep technical knowledge, we do more than supply parts — we help you get the specification right the first time. We hold stock locally to keep your lead times short and your machinery running, and we can advise on compatibility, installation, and how the motor fits within your wider hydraulic circuit.

Need a Parker TF Series motor? Contact our team for pricing, availability, and specification advice — call (07) 849 5771 or request a quote online.
