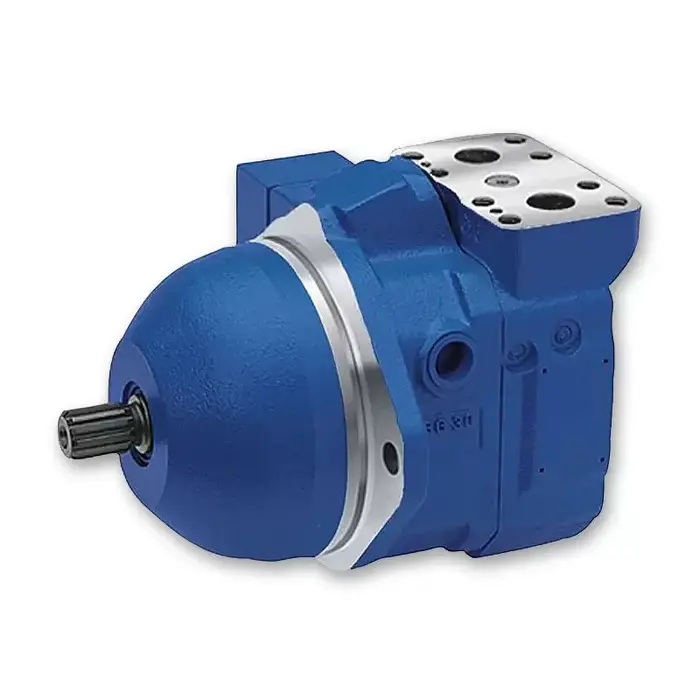

Rexroth A10VE Plug-In Piston Motor

Rexroth A10VE Plug-In Piston Motor

The A10VM rotary group, built to plug straight into your gearbox.

The Bosch Rexroth A10VE is the plug-in version of the proven A10V variable motor — designed to mount directly inside a transmission, axle or winch housing rather than flange on externally. Same well-tried swashplate rotary group, same two-point switchable displacement, in a compact integrated package. Backed by FPD's local stock and hydraulic expertise.

Why the A10VE

A medium-pressure variable motor approved for high rotational speeds, with high power density, low noise and long service life. Two-point control switches between maximum and minimum displacement on demand, and the minimum swivel angle can be set externally to tune the speed/torque split. Sizes 28 to 63, nominal pressure 280 bar, maximum 350 bar, for open and closed circuits.

Technical highlights

• Variable displacement, plug-in (cartridge) design
• Sizes (NG) 28, 45, 63
• Nominal pressure 280 bar, maximum 350 bar
• Two-point control: direct (DG), hydraulic (HZ/HZ6), or electric (EZ1/EZ2/EZ6/EZ7)
• Open and closed circuit operation
• Bidirectional rotation, FKM seals as standard
• Mineral oil (HLP, DIN 51524); other fluids on request

Configuration options

The A10VE uses a special plug-in mounting flange to integrate directly into the host housing. Choose your control method — direct hydraulic, pilot-pressure, or 12 V / 24 V electric switching solenoids with optional damped (orifice) switching. Drive shafts come splined for high or reduced torque, with multiple working-port layouts (ISO 6162 flange or DIN/ISO threaded). An integrated flushing/boost-pressure valve is available, along with DSA1/DSA2 or DST speed sensing factory-mounted on sizes 28 and 45.

Applications

The plug-in format makes the A10VE a natural fit for compact, fully integrated drives — wheel and track drive transmissions, gearbox-integrated propulsion, and winch drives where external mounting space is tight. Like the A10VM, its switchable displacement suits drives needing both a high-torque and a high-speed mode across construction, civil, forestry, agriculture, mining and transport equipment. (Applications shown are typical for this motor type — talk to us about confirming the right configuration for your machine.)

Why source your A10VE from FPD

We know Rexroth hydraulics inside out and pair that with fast local supply and direct, no-nonsense support. Plug-in motors demand careful matching to the host housing — our team helps you get the configuration right the first time.
