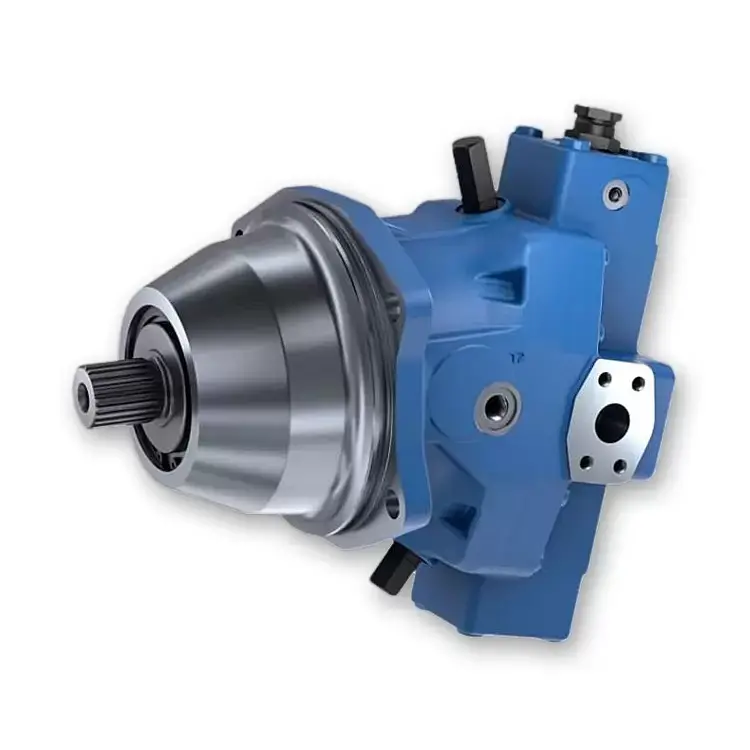

Rexroth A6VE Series Variable Plug-In Motor
When you need high torque and high speed from one compact motor, the Rexroth A6VE delivers both. This bent-axis variable motor plugs straight into your mechanical gearbox — its recessed mounting flange sits in the centre of the case, so it takes up almost no extra space. Built for mobile machinery in open and closed circuits, it arrives tested and ready to install.
Why operators choose the A6VE
- Wide control range — swivels all the way to zero, so one motor covers both high-speed travel and high-torque pulling.
- Space-saving design — recessed flange integrates deep into the gearbox; no awkward configuration to work around.
- Built tough — axial tapered-piston rotary group rated to 450 bar (Series 71), ideal for demanding earthmoving, forestry and drive applications.
- Flexible control — proportional (hydraulic or electric), two-point, and automatic high-pressure or speed-related options to suit your circuit.
Three series, one proven platform
- Series 63 — Single size NG250. Nominal 350 bar, maximum 400 bar. The high-pressure choice for heavier gearbox integration.
- Series 65 — Sizes 28 to 200 cm³/rev, rated to 400 bar. The broad-range workhorse spanning light to heavy-duty drives.
- Series 71 — Sizes 60 to 280 cm³/rev, rated to 450 bar. The high-performance option where you need the most torque and pressure headroom.
Typical applications
Hydrostatic travel and drive systems in mobile plant — earthmoving, forestry, construction and agricultural machinery — wherever a variable motor is integrated directly into a mechanical gearbox.
(Applications inferred from motor type and datasheet positioning — confirm against your specific machine build before publishing.)
Source your A6VE from FPD
FPD has spent decades sourcing and supporting hydraulic motors for New Zealand operators. Tell us your machine, your circuit and your displacement, and our team will help you specify the right A6VE — or get you a price and availability fast.
| Base Model | Displacement cm³/rev | Max. speed @ Max. intermittent flow (rev/min) | Max Pressure (bar) | Max Cont Torque (Nm) | Max Cont Oil Flow (l/min) | Power (KW) | Weight (Kg) |
| Series 63-A6VE250 | 250 | 3300 | 400 | 1391 | 675 | 393.3 | 110 |
| Series 65-A6VE28 | 28.1 | 10450 | 400 | 179 | 156 | 104 | 19 |
| Series 65-A6VE55 | 54.8 | 8350 | 400 | 349 | 244 | 162.6 | 28 |
| Series 65-A6VE80 | 80 | 7350 | 400 | 509 | 312 | 207.9 | 36 |
| Series 65-A6VE107 | 107 | 6300 | 400 | 681 | 380 | 253.2 | 46 |
| Series 65-A6VE160 | 160 | 5500 | 400 | 1019 | 496 | 330.8 | 62 |
| Series 65-A6VE200 | 200 | 5100 | 400 | 1273 | 580 | 386.6 | 78 |
| Series 71-A6VE60 | 62 | 8400 | 450 | 444 | 275 | 206.9 | 28 |
| Series 71-A6VE85 | 85.2 | 8350 | 450 | 610 | 332 | 249.1 | 36 |
| Series 71-A6VE115 | 115.6 | 7350 | 450 | 828 | 410 | 307.8 | 46 |
| Series 71-A6VE170 | 171.8 | 5750 | 450 | 1230 | 533 | 399.3 | 62 |
| Series 71-A6VE215 | 216.5 | 5500 | 450 | 1550 | 628 | 470.7 | 78 |
| Series 71-A6VE280 | 280.1 | 3550 | 450 | 2006 | 700 | 525.2 | 109 |
