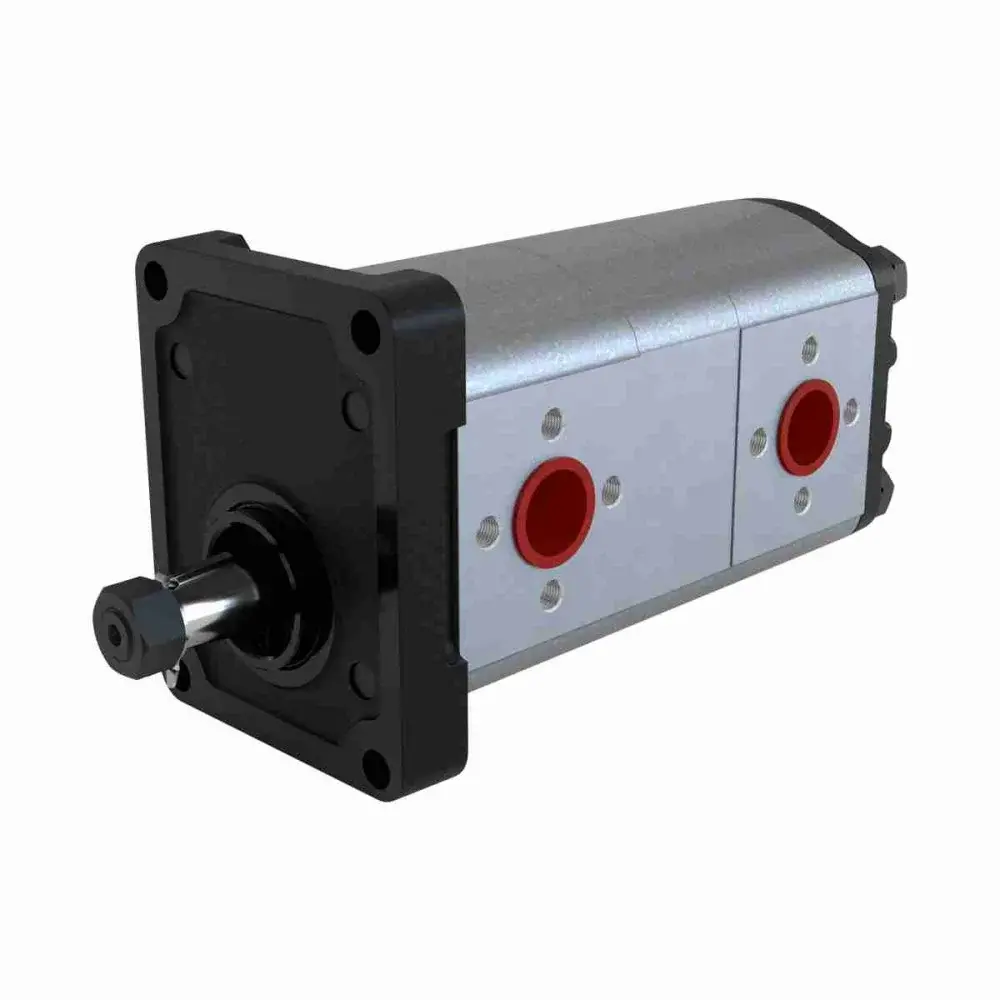

Blue Ascend Aluminium Body Tandem Pump – Group 20/20
Model: AP20 / AP20
Two Group 20 pumps combined on a single shaft. Provides two independent flow outputs — both circuits share the same oil. Suited to systems requiring dual-pump feeding within the same hydraulic circuit.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 3.9 – 40.0 cc/rev
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,500 rpm
- Body: Aluminium
- Note: Compartments connected — single fluid system
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Notes |
| AP20.040/*** | 3,9 | 250 | 3500 | 650 |
| AP20.060/*** | 5,9 | 250 | 3500 | 650 |
| AP20.080/*** | 8,0 | 250 | 3500 | 650 |
| AP20.095/*** | 9,4 | 250 | 3500 | 600 |
| AP20.115/*** | 11,4 | 250 | 3000 | 600 |
| AP20.140/*** | 13,9 | 250 | 3000 | 600 |
| AP20.148/*** | 14,8 | 250 | 3000 | 600 |
| AP20.160/*** | 16,0 | 250 | 3000 | 600 |
| AP20.190/*** | 19,2 | 250 | 3000 | 600 |
| AP20.220/*** | 21,9 | 210 | 2500 | 600 |
| AP20.250/*** | 24,8 | 190 | 2500 | 600 |
| AP20.280/*** | 27,9 | 170 | 2200 | 600 |
| AP20.320/*** | 32,0 | 160 | 2000 | 500 |
| AP20.340/*** | 34,0 | 150 | 2000 | 500 |
| AP20.380/*** | 38,0 | 140 | 1750 | 500 |
| AP20.400/*** | 40,0 | 130 | 1750 | 500 |
